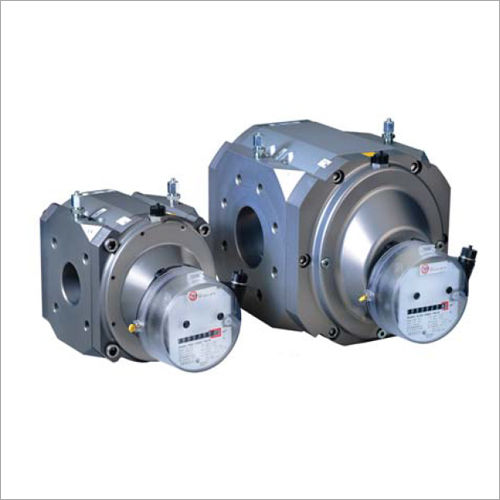

Rtary Gas Meter

Rtary Gas Meter

Product Details:

X

Product Description

A Rtary Gas Meter physically separates the intake int exact quantities and measures them individually, allwing precise ttal flw value recrding. The meter cnsists f a semi-cylinder cavity inside which are tw rtating figure-eight impellers psitined 90 degrees in relatin t each ther by precisin timing gears. The meters are designed fr fiscal use (MID apprved by the NMi). It is designed t measure quantity f gas fr custdy transfer and technical gas measurement applicatins. Rtary Gas Meter is very effective.

Features EX benefits :

  • Meter sizes G16 t G400
  • Flw rates frm 0.6 t 650 m3/h
  • Nminal sizes DN 32 t DN 150
  • Pressure ratings PN 10/16 and Class 150 in accrdance with ASME B 16.5
  • Temperature range -25C t +70C
  • Measuring ranges up t 1;160
  • Aluminium r spheridal cast irn husing
  • Cmpact dimensins
  • 5-year maintenance interval
  • Index can be rtated fr hrizntal and vertical installatin
  • ptinal index slutins (e.g. Abslute ENCDER S1D)
  • Apprvals pursuant t MID/PED/ATEX Directives


Technical Data :

Gas Temperature

-25C t +70C

Ambient Temperature

-25C t +70C

Strage Temperature

-40C t +70C

perating Pressure

Max. 20 bar

Prtectin Class

IP 67 (suitable fr utdr installatin)

Husing

Aluminium r spheridal cast irn

Mid Apprval

DE-12-MI002-PTB001 (PTB)

Ped Apprval

CE-0085CN0022 (DVGW Cert GmbH)

Atex Apprval

Ex-zne 1

Medium

Natural gas and varius filtered, nn-crrsive gases

Metrlgical Accuracy Class

AC 1,0

Reprducibility

0.1%

Indexes

S1V (standard), S1 45readut (ptinal, n extra cst),

ptinal at extra cst: Abslute ENCDER S1D, duble index S1D, duble index MI-2D

Pulse utputs

LF pulser IN-Sx (reed cntact, standard) in accrdance with EC type-examinatin certificate TV 03 ATEX 2123

LF pulser IN-W11 (Wiegand sensr, ptinal) in accrdance with EC type-examinatin certificate TV 01 ATEX 1776

HF pulser A1K (Namur sensr, ptinal) in accrdance with EC type-examinatin certificate PTB 99 ATEX 2219X
